Here it is - the install of AAC halos on the 500.

I am waiting on a mod or admin to step in and let me know if I can offer installs for members without becoming a vendor.
If they say yes, I will at least return the favor by upping my donation level (I would donate either way - I believe in supporting the clubs I am a member of)
If they say no, I will have to wait and see if there is enough interest in the halos to justify the vendor fees (fair tho they may be)

Either way, this is a step by step for anyone that wants to attempt it themselves.
(at this point I only have up to the splitting of the lights since my halos arent in yet and I am having the buckets painted)

1: Remove the front fascia. Its really simple - there are 4 Allen head bolts across the top, 5 underneath and one on each side in the wheel well. Remove the 3 Phillips screws from in each wheel well.
Unplug the side marker lights and unplug the driving/ turn signal housings.
Once the fascia is unbolted the sides are held in with plastic clips. A sharp pull should unclip them. The front most one was a little winky, so use a plastic tool of some sort to unclip it.

2: Remove the headlights - there are 3 10mm bolts per light and a little "tit" that holds them in place once the bolts are removed.

3: Preheat the oven to 220 and set any racks to the bottom - you want the housing as close to the middle of the oven as possible.

4: put the lights in the oven one at a time and set a timer for 25 minutes.

5: now the "fun" begins. Take the housing out of the oven with gloves on and set it on a terry cloth or other soft surface - you are about to go medieval on them and dont want to scratch the lens.
Using a bladed screwdriver or similar, you will work the adhesive loose from the outer black plastic lip all the way around the housing. When the plastic begins to cool and stops easily bending back, stick the light back in the oven for another 20 min or so.
(Tip: When you take one light out, put the other in so that one is heating up as you are working the other - it will make the best use of your time)
After you get the outer part bent out you will take the screwdriver and work it under the lens to separate the adhesive from the lens. Be careful with this part - if you get too aggressive with the screwdriver you can go too deep and scratch the inside of the lens or break something you can see. Again, as the plastic cools put it back in the oven to heat back up.
Be careful here not to bend or damage the plastic lens.

I am not exaggerating here - it took me over 2 hours to split both housings.

Once the lens is separated, you will need to put the housing back into the oven one more time. Once its hot again, use pliers to bend the channel back into shape for when you reassemble the housings.

You will also need to scrape out as much of the grey adhesive as you can - this will not soften enough to reseal the light, so any left in could allow a leak when you reassemble them.

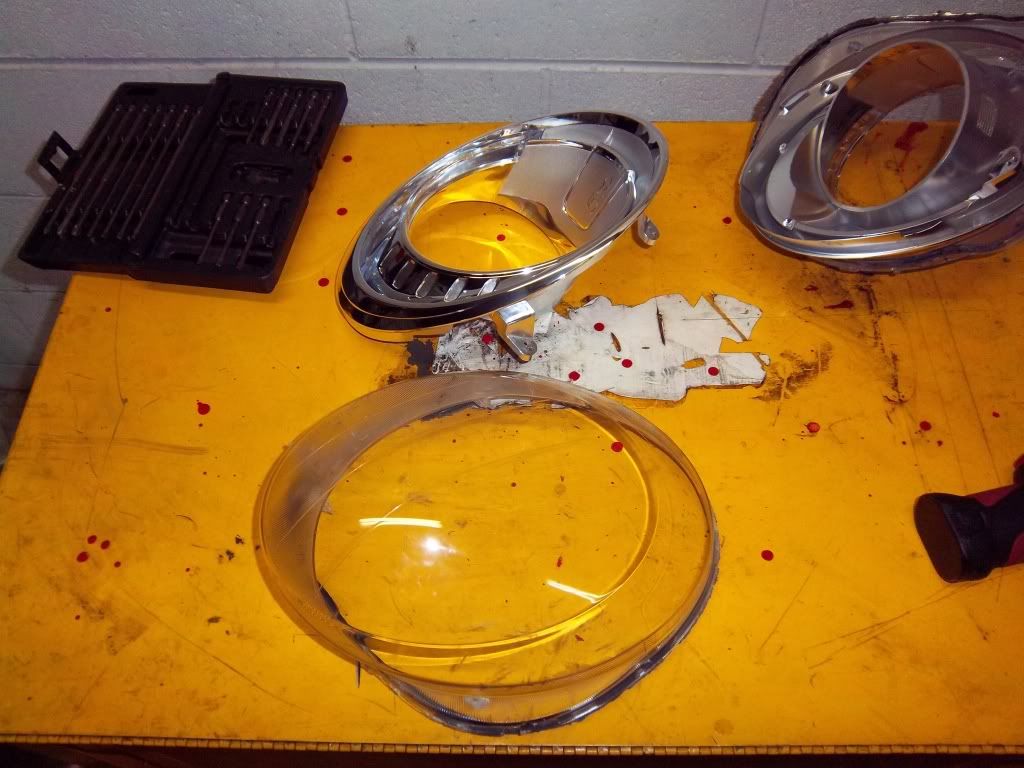

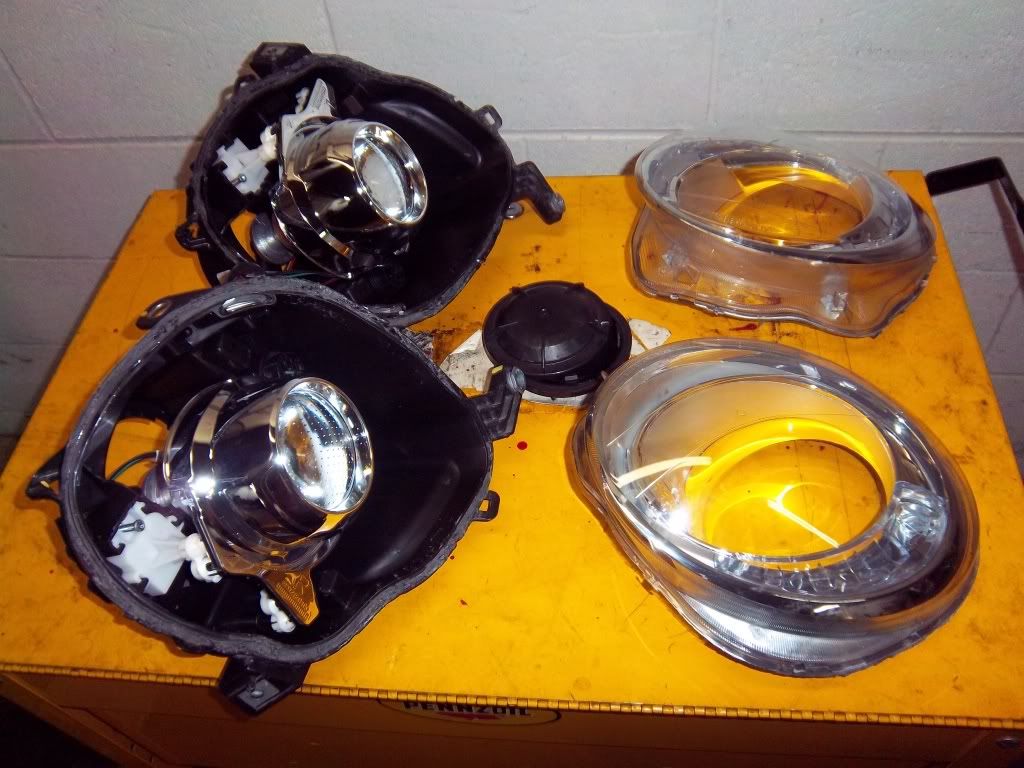

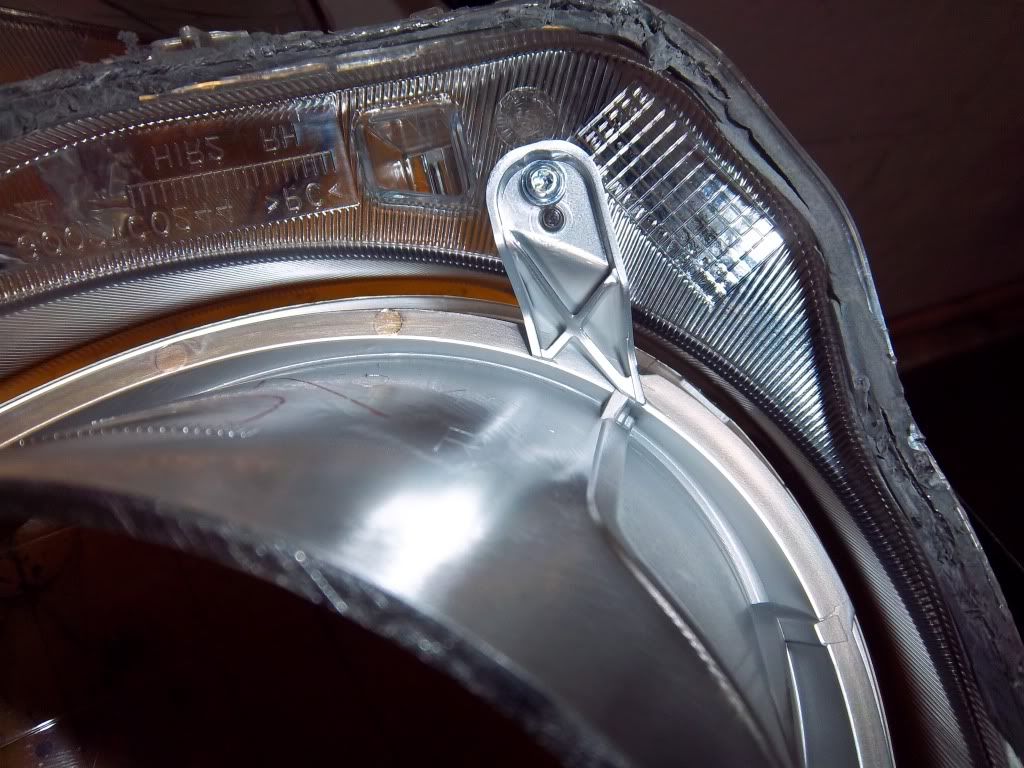

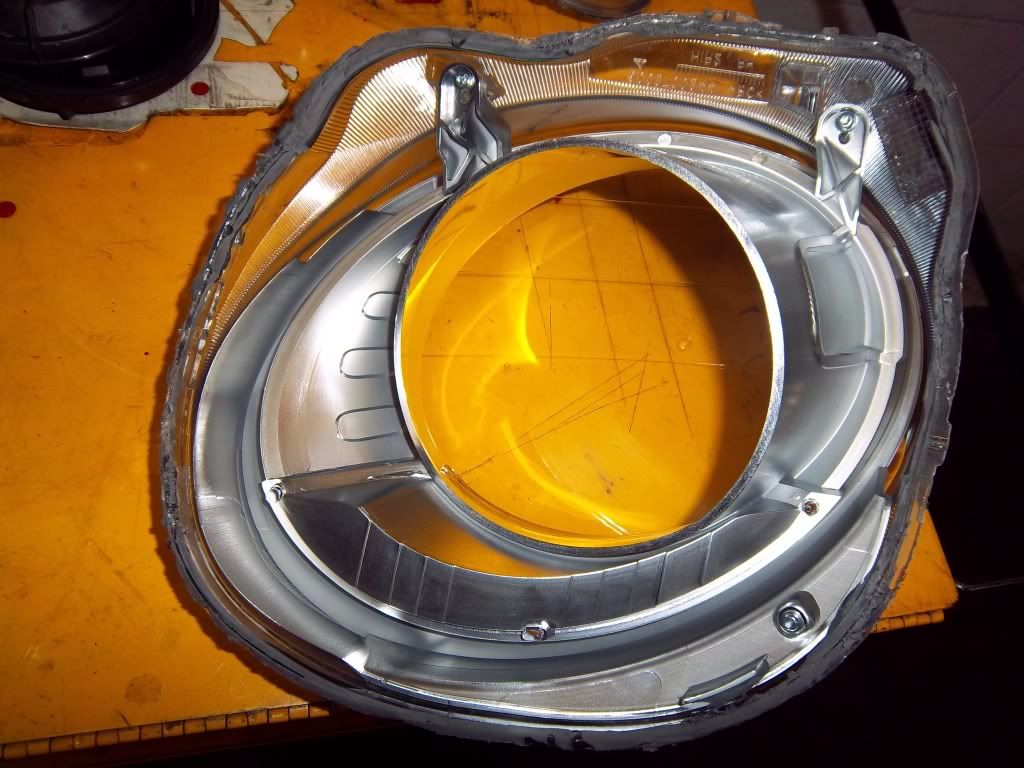

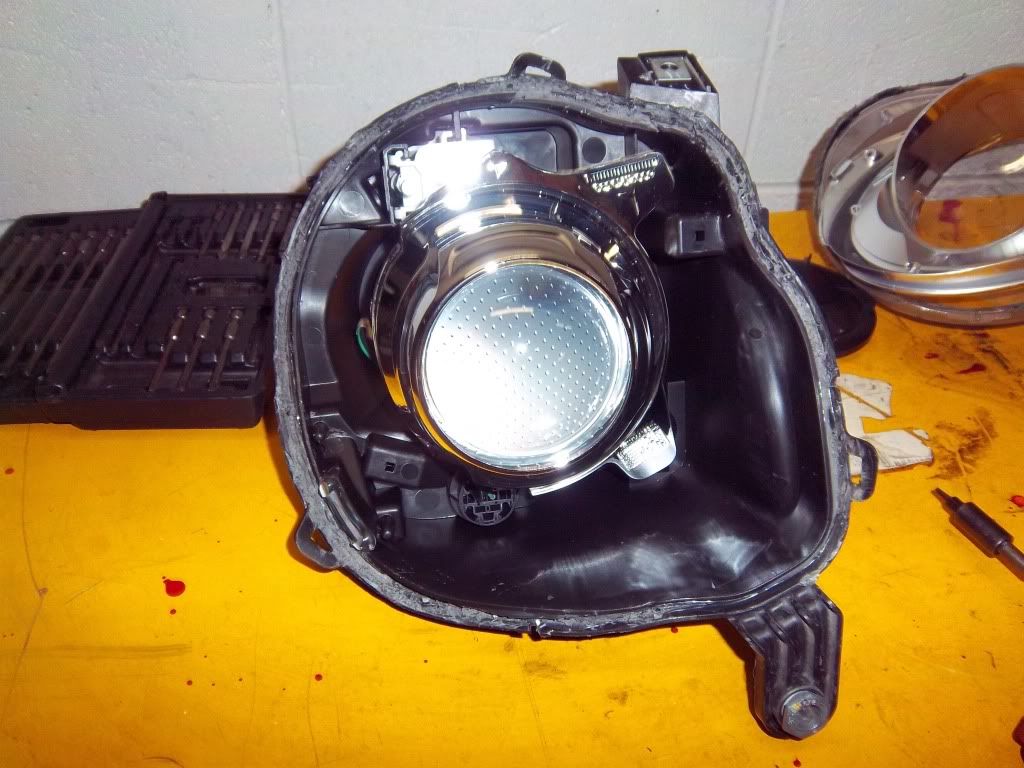

Here are some pics of the split housings and what it looks like.








more info to come as I put it all back together... hope you read all the way to the bottom before starting :p


·
