Hey guys/Gals
I have been away for a bit after moving to Colorado I'm up in the mountains and do not have internet or much cell service..

I will add a few older pictures for the new people..
but here is the new build..

the finished install..I am going to replace

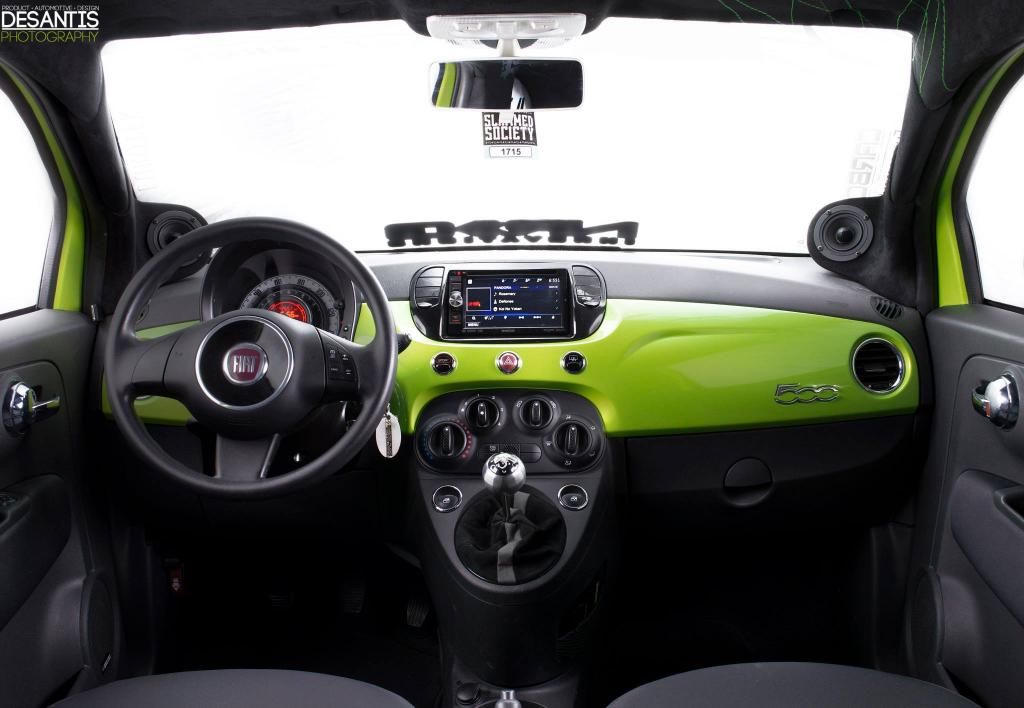

here is the front stage (This will stay the same)
Hybrid L3v2, Clarus 5.25" midbass



A Picture of the car.



Here is the sound treatment






·
Registered
Joined
·
422 Posts
Discussion Starter #2
The new setup in the hatch will be something like this


watching some video's to refresh before I move to the next step.
https://youtu.be/KXUSHr8o6lI


I have the base of the floor made and I used threaded nutcerts to mount it to the car so it will be the same every time I pull it out and reinstall it.


more pictures soon..
8" subwoofer going on the left side of the hatch area.. this will be the main display


·
Registered
Joined
·
422 Posts
Discussion Starter #3

You can see I ran the Jigsaw backwards to get a rough edge to hold the bodyfiller to the MDF so I can get a good match and I will not need to worry about the filler pulling off or moving.



Here is the picture of my new shape and In/Out templates.



I Made a foundation to mount everything to and used a nutcert gun to install threaded certs into the floor i used 1/4-20 bolts
One of my goals with this install is to make it fully moduler.
I am looking to keep the install about the same, but have the ablity to change the subwoofer enclosure without having to redo the full install again like I have in the past.


More updates soon





another shot of the floor I used Forstner Bits to make a perfect fit for the bolt head.


·
Registered
Joined
·
422 Posts
Discussion Starter #4
Got a bit done in my hour I have after work..
I was able to make the floor, mock up the subwoofer enclosure.
(.75^ tuned at 35hz)
Flush mounting the subwoofer, curved face the the trim that will cover the subwoofer enclosure..
Thinking of a way to add the shop logo into the install.. Will see










·
Registered
Joined
·
422 Posts

·
Registered
Joined
·
422 Posts
Discussion Starter #6
Going to get up early to get more done.. Here is what I got now..
Getting ready for router work on the main parts..
Used temple tape to hold the parts in place, used Sonus Matter filler to fill the gap between the routered finished part and the rough cut trim for the inter cut, I used a Kent double sided tape 2x to gap for (2) parts in vinyl.
I sanded it in the soft stage and will pop it in the morning..



·
Registered
Joined
·
422 Posts
Discussion Starter #7
Here is what I got done before work.


Back wall finished, I have a few more parts mocked up but not finished yet.. I hope after work..



Both in/out templates



Mocking up the floor making sure its all lined up and fitting good.


·
Registered
Joined
·
422 Posts
Discussion Starter #8
Well I may get to working on it but with Easter and a date night with my wife.. I decided to send my car with a friend for a quick mod..
stainless Steel Performance Header.
1.65" Equal Length Runner Pipes and 2.5" Pipe Merge Pipe
Increase HP 6+ and Torque 12+.
